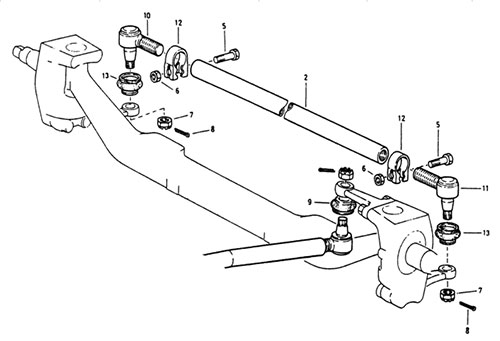

| THE ROD/钢性前桥转向横拉杆 | |||
| D NO. | Part NO. | Part Name | Quantity |
| 0 | AZ9112430003 | Tie rod C | 1 |
| 0/A | AZ9700430050 | Tie rod | 1 |
| 2 | AZ9112430003-1 | Tie rod | 1 |
| 2/A | AZ9700430050-1 | Tie rod | 1 |
| 7 | Q387B20T15 | Gastle nut | 1 |
| 8 | Q5004036 | Cotter pin | 1 |
| 10 | AZ9112430003-4 | Ball joint Right | 1 |
| 10/A | AZ9700430050-4 | Ball joint Right | 1 |
| 11 | AZ9112430003-11 | Ball joint Left | 1 |
| 11 /一个 | AZ9700430050-11 | Ball joint Left | 1 |
| 12 | AZ9112430003-12 | Clip | 2 |
| 12/A | AZ9700430050-12 | Clip | 2 |
| 13 | AZ9112430003-13 | Packing bellows | 2 |
| 13/A | AZ9700430050-13 | Packing bellows | 2 |
