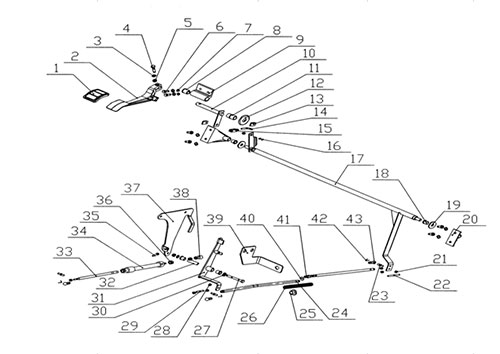

| NO. | Part No. | Part Name | Quantity |
| 1 | WG9719570001 | Rubber footboard | 1 |
| 2 | AZ9719570002 | Pedal | 1 |
| 3 | Q40108 | Washer | 8 |
| 1/4 | Q150B0835 | Screw | 1 |
| 1/5 | Q340B08 | Nut | 3 |
| 6 | Q150B0820 | Screw | 6 |
| 7 | Q40308 | Spring washer | 2 |
| 1/8 | AZ9719570006 | Bush | 1 |
| 9 | AZ9719570007 | Bracket | 1 |
| 9A | AZ9719570085 | Stop block | 1 |
| 10 | WG9719570003 | Control shaft | 1 |
| 10/A | WG9719570081 | Control shaft | 1 |
| 10A | 1288 570057 | Spring | 1 |
| 1/11 | AZ9719570008 | Bush | 1 |
| 12 | WG9719570009 | Rubber ring | 1 |
| 13 | AZ9719570012 | Plastic clamp | 2 |
| 14 | AZ9719570011 | Adjusting screw | 1 |
| 15 | 190003964412 | Fork head | 1 |
| 16 | Q43650 | Snap ring | 2 |
| 17 | WG9719570015 | Lever | 1 |
| 18 | AZ9719570023 | Bush | 4 |
| 19 | Q40212 | Washer | 2 |
| 20 | AZ9719570010 | Bracket | 2 |
| 21 | Q340B06 | Nut | 8 |
| 22 | AZ9719570051 | Threaded bar | 1 |
| 23 | 190003963313 | Ball pivot | 3 |
| 24 | AZ9719570040 | Brace rod | 1 |
| 25 | AZ9719570060 | Sleeve | 1 |
| 26 | AZ9719570061 | Spring | 1 |
| 27 | Q150B0870 | Screw | 1 |
| 27/A | 199012570084 | Bolt | 2 |
| 27A | Q40106 | Washer | 2 |
| 27B | Q5002014 | Split pin | 1 |
| 28 | Q33206 | Nut | 1 |
| 28/A | Q350B06T15 | Nut | 2 |
| 29 | AZ9719570052 | Threaded bar | 1 |
| 30 | AZ9719570034 | Rubber pad | 1 |
| 30/A | WG99014180012 | Bush | 1 |
| 31 | AZ9719570029 | Lever | 1 |
| 31/A | AZ9725570100 | Lever | 1 |
| 31A | 199100570065 | Spring | 1 |
| 32 | AZ9719570033 | Spacer | 1 |
| 33 | 199012570062 | Threaded rod | 1 |
| 34 | WG9100570002 | Operating cylinder | 1 |
| 34/A | WG9100570014 | Operating cylinder | 1 |
| 35 | Q150B0625 | Screw | 1 |
| 36 | Q340B10 | Nut | 1 |
| 37 | AZ9719570026 | Bracket | 1 |
| 37/A | AZ9719570073 | Bracket | 1 |
| 38 | 190003963623 | Ball cup | 1 |
| 38A | 190003936514 | Clip | 1 |
| 38B | Q340B08 | Nut | 1 |
| 39 | AZ9719570062 | Bracket | 1 |
| 40 | Q40206 | Washer |
