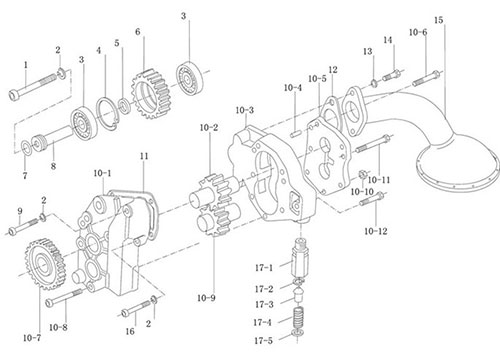

| NO. | Part No. | Part Name | Chinese name |
| 1 | 90003802578 | Bolt | 六角头螺栓 |
| 2 | 90003931122 | Spring washer | 弹簧垫圈 |
| 3 | 900033114lO | Bearing | 向心球轴承 |
| 4 | 90003934732 | Snap ring | 带凸齿的孔用挡圈 |
| 5 | 6140749 | Ring | 中间隔圈 |
| 6 | 61407006l | Gear | 机油泵中间齿轮 |
| 7 | 614070155 | Seal ring | 密封圈 |
| 8 | 6140756 | Gear shaft | 中间齿轮轴 |
| 9 | 90003800551 | Bolt | 六角头螺栓 |
| 10 | AZl500070021A | Oil pump | 48mm 加宽机油泵 |
| 10-1 | 61500070029 | Front cover | 机油泵前盖 |
| 10-2 | AZ1500070019A | Gear assy | 机油泵齿轮总成 |
| 10-3 | AZ1500070015A | Housing | 机油泵壳体 |
| 10-4 | 90003901420 | Pin | 圆柱销 |
| 10-5 | 61500070024 | Rear cover | 机油泵后盖 |
| 10-6 | Screw | 内六角圆柱头螺钉 | |
| 10-7 | 614070060 | Gear | 机油泵驱动齿轮 |
| 10-8 | 90003802569 | Bolt | 六角头螺栓 |
| 10-9 | AZ1500070020A | Gear | 机油泵齿轮总成 |
| 10-10 | 90012210003 | Nut | 1 型六角螺母 |
| 10-11 | 90003800458 | Bolt | 六角头螺栓 |
| 10-12 | 90003800441 | Bolt | 六角头螺栓 |
| 11 | 614070055 | Shim | 机油泵垫片 |
| 12 | 614070078 | Shim | 垫片 |
| 13 | 90003930271 | Washer | 平垫圈 |
| 14 | 90003802523 | Bolt | 六角头螺栓 |
| 15 | 61800070051 | Filter | 集滤器总成 |
| 16 | 90003802527 | Bolt | 六角头螺栓 |
| 17 | 61500070099 | Release valve C | 机油泵限压阀总成 |
| 17-1 | 61500070098 | Valve body | 限压阀体 |
| 17-2 | AZ9003930011 | Snap ring | 孔用弹性挡圈 |
| 17-3 | 614070130 | Valve | 限压阀 |
| 17-4 | 614070131 | Spring | 弹簧 |
| 17-5 | 681270027 | Shim | 垫片 |
