DRIVER'S CAB

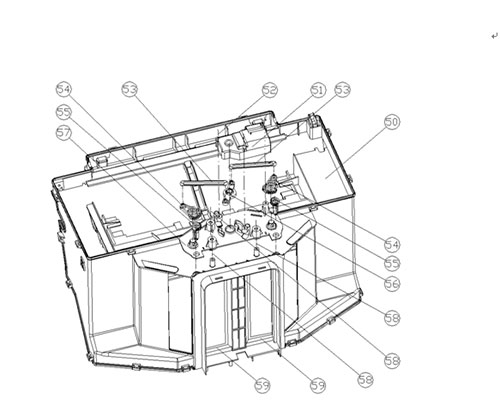

MID SHELL ASSEMBLY

2015-10-26 15:30:26

NO PART NO QUANTITY Designation
50 AZ1664820024 1 Mid shell 空调机中壳体
51 WG1664820033/1 1 Driver / inlet control 循环风门控制电机
52 Q2713525 3 Selftaping screw 十字槽盘头自攻螺钉
53 AZ1664820032 2 Stick 循环风门连杆
54 AZ1664820027 2 Gear 循环风门过渡齿轮
55 AZ1664820028 2 Gear 循环风门直连齿轮
56 AZ1664820026 1 Stick 循环风门摆杆
57 AZ1664820025 1 Mounting plate 风门控制机构支承板
58 Q2714216 3 Selftaping screw 十字槽盘头自攻螺钉
59 AZ1664820029 2 Door / inlet 循环风门总成
60 AZ1664820063 1 Evaporator bracket upper 蒸发器上支架
61 Q2714216 2 Selftaping screw 十字槽盘头自攻螺钉
61a Q40105 2 Washer 平垫圈
62 AZ1664820070 1 Sealing pad 密封垫
