WD615 SERIES EURO 3

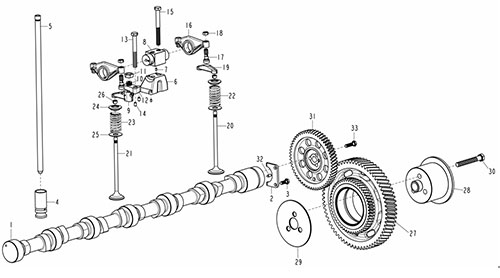

VALVE-GEAR MECHANISM

2016-09-27 10:53:47

NO. Part No. Chinese Name Part name
1 VG1246050038 凸轮轴 Camshaft
2 VG1246050039 凸轮轴止推片 Thrust flange
3 Q150B0820TF2 六角头螺栓 Hex head bolt
4 VG1246050029 气门挺柱 Valve tappet
5 VG1246050020 气门推杆 Valve push rod
6 VG1246050005 摇臂座 Rocker arm support
7 Q5210406 圆柱销 Dowel pin
8 VG1246050006 摇臂轴总成 Rocker arm shaft assembly
9 VG1246050050 EVB排气门桥组件 EVB exhaust valve bridge assembly
10 VG1246050055 EVB调节螺钉 EVB setting screw
11 VG1246050056 EVB调节螺母 EVB setting nut
12 VG1246050057A EVB压板 EVB impaction plate
13 Q150B1095TF2 六角头螺栓 Hex head bolt
14 Q5210614 圆柱销 Dowel pin
15 Q150B10100TF2 六角头螺栓 Hex head bolt
16 VG1246050008 气门摇臂总成 Rocker arm assembly
17 VG1246050011 气门桥调节螺钉总成 阀固定螺钉
18 VG2130050065 气门间隙调整螺母 Nut
19 VG1246050013 气门桥 Valve bridge
20 VG1246050021 进气门 Intake valve
21 VG1246050022 排气门 Exhaust valve
22 VG1246050023 进气门弹簧 Intake valve spring
23 VG1246050024 排气门弹簧 Exhaust valve spring`
24 VG1246050025 气门弹簧上座 Spring cup
25 VG1246050026 气门弹簧下座 Spring seat
26 VG1246050028 气门锁夹 Valve cone
27 VG1246050060 中间齿轮总成 Idle gear assembly
28 VG1246050034 中间齿轮轴 Idle gear axle
29 VG1246050035 止推片 Thrust washer
30 Q150B1290TF2 六角头螺栓 Hex head bolt
31 VG1246050036 凸轮轴齿轮 Camshaft gear
32 Q5210612 圆柱销 Dowel pin
33 Q150B0830TF2 六角头螺栓 Hex head bolt
