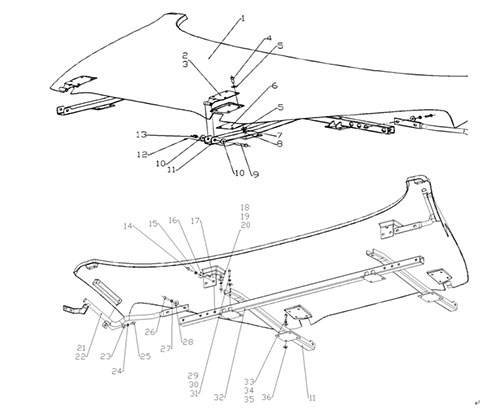

NO	PART NO	Quantity	Part Name	The name of the
1	WG1664870022	1	Roof this	dome
2	WG1664870052	1	The left front link plate for roof this sense	Dome left before connecting plate
3	WG1664870053	1	The Front - break right for roof this sense	Dome right front bracket
4	Q218B0825	8	hexagonScrew	Hex cylinder head screw
5	Q40208	16	Washer	The big washer
6	WG1662870054	2	Section	gasket
7	Q40308	8	The spring washer	Spring washer
8	Q340B08	8	Hexagon nut	Ⅰ hexagonal nut
9	Q173B1065	2	Hexagon bolt	Hexagonal screw bolt
10	Q40210	4	Washer	The big washer
11	WG1664870023	2	Member frontFor roof this	Dome bracket before assembly
12	Q5002532	2	forelock	Cotter pin
13	Q381B10	2	Hexagon nut	1Hexagonal slot type nut-Fine thread- AandBlevel
14	Q150B1030	4	Hexagon bolt	Hexagon head bolts
15	Q40310	4	The spring washer	Spring washer
16	Q40210	4	Washer	The big washer
17	WG1664870042	2	Member rear for roof this sense	After the dome bracket
18	Q150B0820	8	Hexagon bolt	Hexagon head bolts
19	Q40308	8	The spring washer	Spring washer
20	Q40208	8	Washer	The big washer
21	WG1664870032	1	The left bracketThe assembly	The left elbow support assembly
22	WG1664870033	1	Right bracketThe assembly	Right elbow pipe bracket assembly
23	Q40208	4	Washer	The big washer
24	Q40308	4	The spring washer	Spring washer
25	Q150B0820	4	Hexagon bolt	Hexagon head bolts
26	Q150B1030	4	Hexagon bolt	Hexagon head bolts
27	Q40310	4	Washer	Spring washer
28	Q40210	4	Washer	The big washer
29	Q150B1030	2	Hexagon bolt	Hexagon head bolts
30	Q40310	2	Washer	Spring washer
31	Q40210	2	Washer	The big washer
32	WG1664870026	1	Member rearFor roof this	After the dome bracket assembly
33	Q150B0830	16	Hexagon bolt	Hexagon head bolts
34	Q40308	16	Washer	Spring washer
35	Q40208	16	Washer	The big washer
36	AZ1664870055	16	As ofrubber	Rubber mat
